The first time I watched a grid twist on my laptop screen, I felt something move inside me too.

It was a quiet afternoon in the lab — Mumbai heat outside, soft humming of the CPU inside. The code wasn’t long. Just a few lines of Python, a few lines of math. But as the grid rotated, stretched, and sheared across the screen, I realized this wasn’t just algebra — it was choreography.

Numbers were moving. Space was bending.

And beneath that elegant motion was a single truth I’d learn to love through my Masters in AI — every transformation is a story of change with structure.

That’s what a linear transformation really is.

It’s not just matrix multiplication. It’s a rule that turns one space into another, without breaking the harmony in between.

When Grids Learn to Dance

To understand linear transformations, forget numbers for a moment.
Picture a simple 2D grid — evenly spaced dots forming tiny squares.

Now imagine applying a transformation:

• The grid rotates by 45°.

• Or maybe it stretches twice along the x-axis.

• Or shears slightly so every square becomes a slanted parallelogram.

The beauty? The grid still feels coherent. Straight lines stay straight. Parallel lines remain parallel. The spacing changes, but the structure holds.

That’s the defining quality of a linear transformation.

It changes how things look, but not how they relate.

In math, that means:

— preserving addition and scalar multiplication.

Linearity is respect — for proportion, for direction, for symmetry.

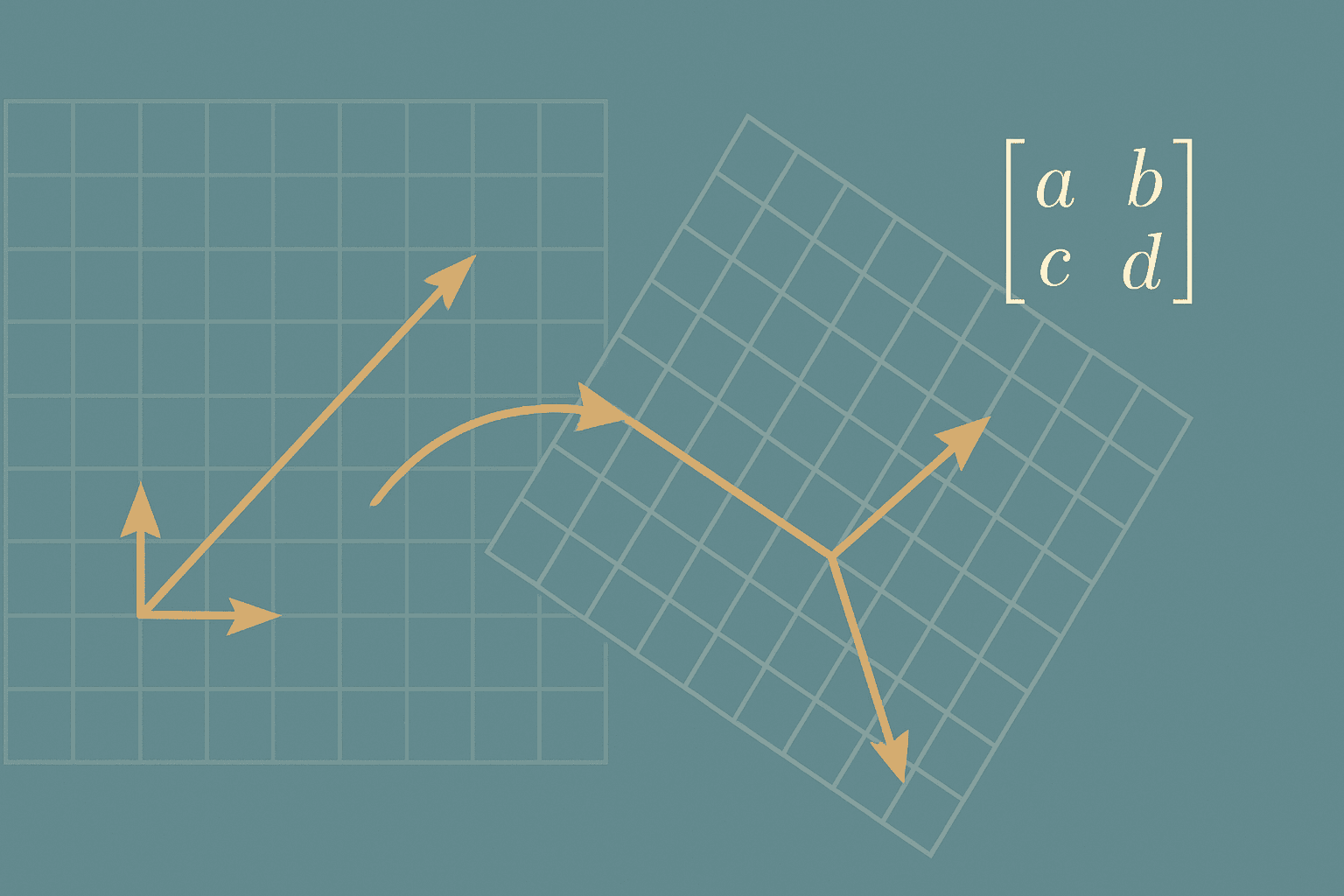

Matrices — The Machines Behind the Motion

Every linear transformation has a secret identity: a matrix.

If a transformation rotates, scales, or shears space, there exists a matrix that captures it completely.

In 2D, that’s a 2×2 matrix:

For any vector

the transformation is:

Each element tells you how the original coordinates mix to form the new ones.
A acts like a blender — mixing directions and magnitudes, yet keeping the system logical.

What makes it beautiful is that the same rule applies to every vector in the space.
That consistency — the uniformity of transformation — is what defines linearity.

Seeing It in Code

Let’s recreate that motion.

import numpy as np
import matplotlib.pyplot as plt

# Define grid
x = np.linspace(-1, 1, 15)
y = np.linspace(-1, 1, 15)
X, Y = np.meshgrid(x, y)
points = np.vstack([X.flatten(), Y.flatten()])

# Define transformation matrix (rotation + shear)
A = np.array([[1, 0.5],
              [0.2, 1]])

# Apply transformation
transformed = A @ points

plt.figure(figsize=(6,6))
plt.scatter(points[0], points[1], color='lightgray', label='Original')
plt.scatter(transformed[0], transformed[1], color='blue', label='Transformed')
plt.axis('equal'); plt.legend(); plt.show()

You’ll see the grid bend gracefully — stretched and tilted, yet still harmonious.
That’s what makes linear transformations magical: they distort without breaking.

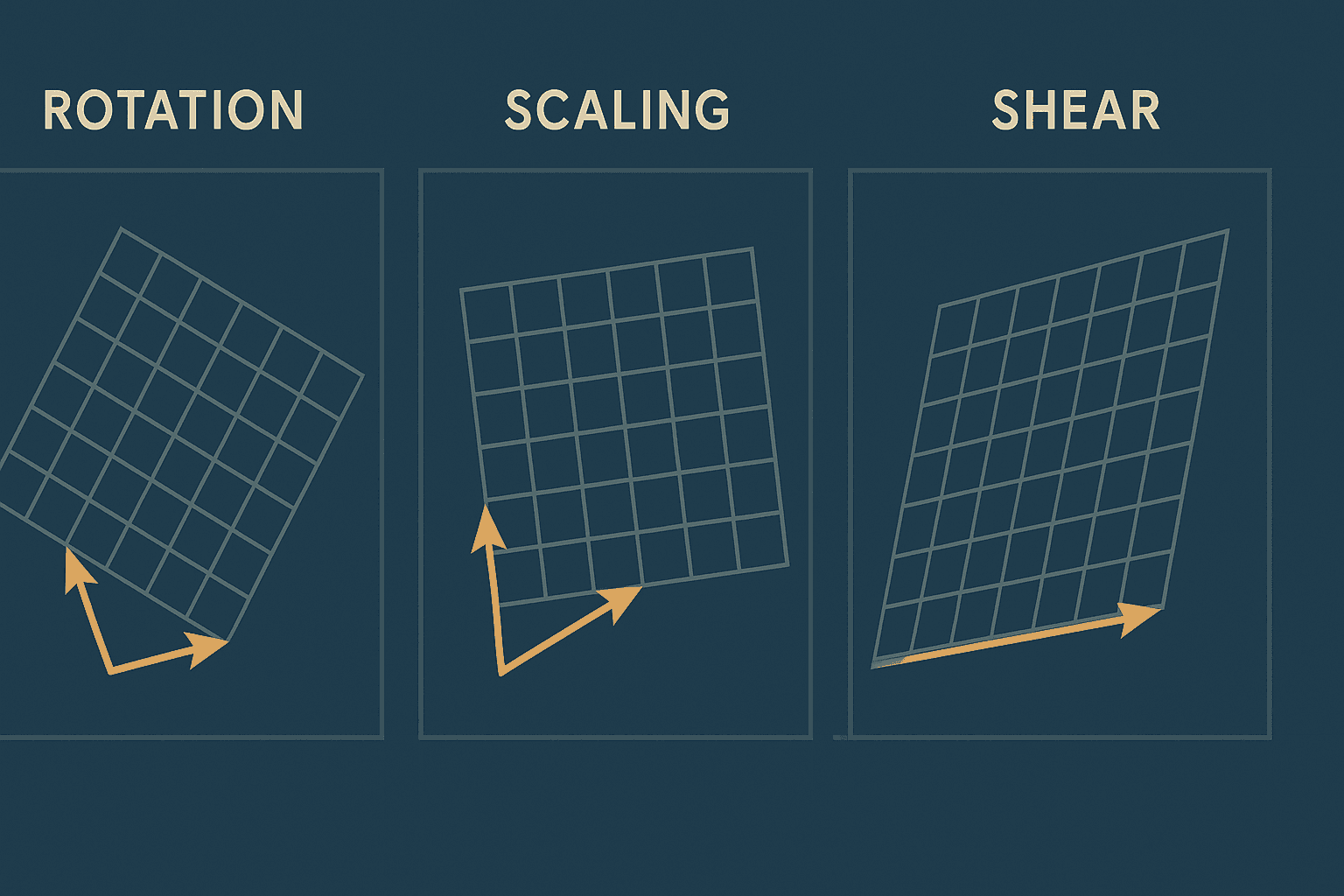

The Core Transformations

Every complex transformation in AI or computer graphics can be built using three fundamental linear motions: rotation, scaling, and shearing.

Rotation — Change Without Distortion

Rotation preserves distances but alters orientation.

Everything turns, but structure stays intact.
It’s change with respect — like learning something new without losing yourself.

Scaling — Stretching or Shrinking

Scaling modifies magnitude but not direction.

It’s how data normalization works in ML — keeping shape, adjusting scale.
Or in life terms: effort stretched, ego compressed.

Shearing — Controlled Distortion

Shear shifts one axis relative to another:

The form bends without collapsing — flexibility without destruction.

Shear is where stability learns to flex.

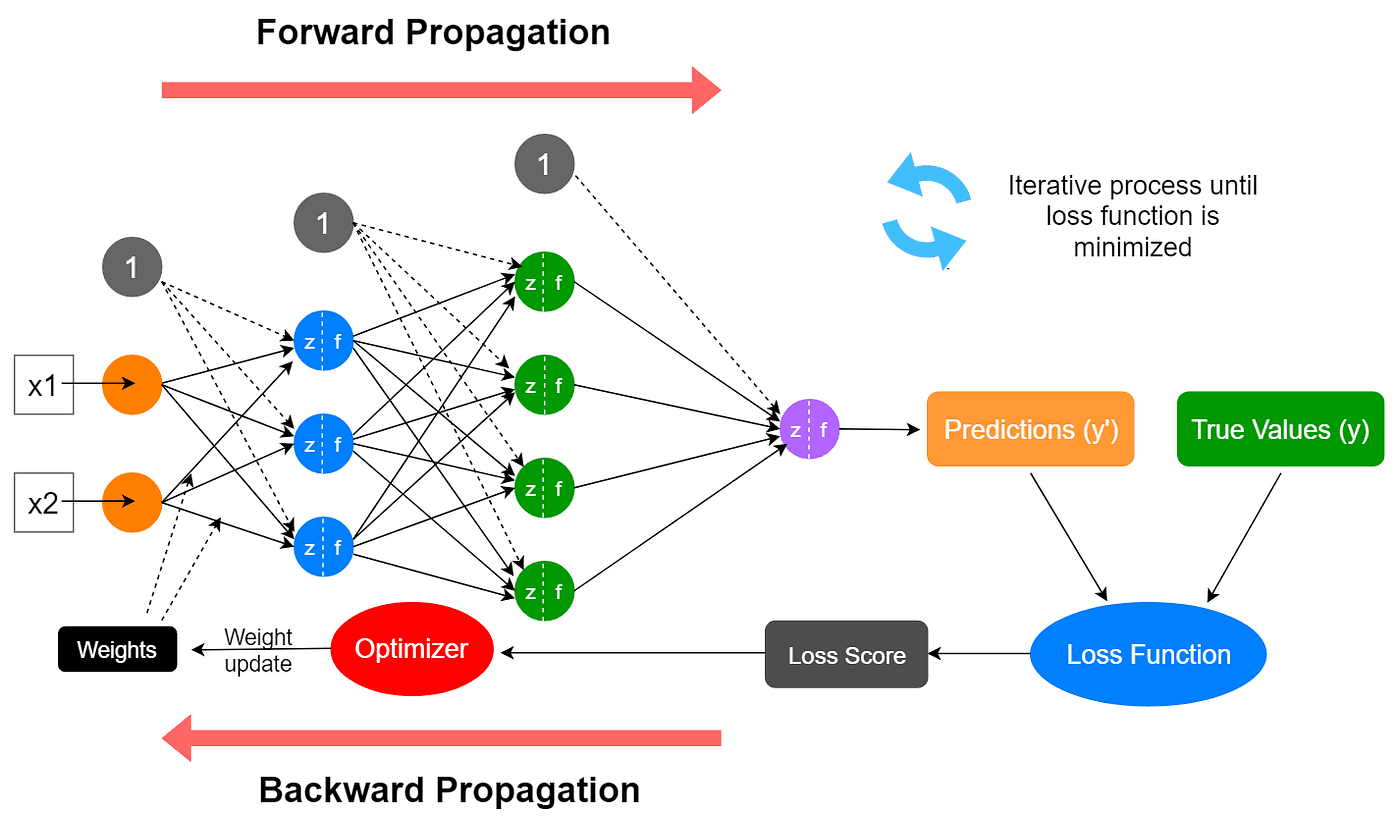

Linear Transformations in AI — Geometry as Intelligence

When I finally connected these geometric ideas to AI, it felt like deja vu.
Every neural network layer is a linear transformation followed by a nonlinearity.

Here:

• X: input features

• W: weight matrix — your transformation

• b: bias vector — your shift

• Z: transformed representation

The weights reshape input space, learning which directions matter.
Each training step updates this transformation — fine-tuning how the model perceives patterns.

The whole deep learning pipeline is nothing but chained linear transformations, layered with purpose.

Intelligence, at its core, is the art of applying the right transformations to noisy data.

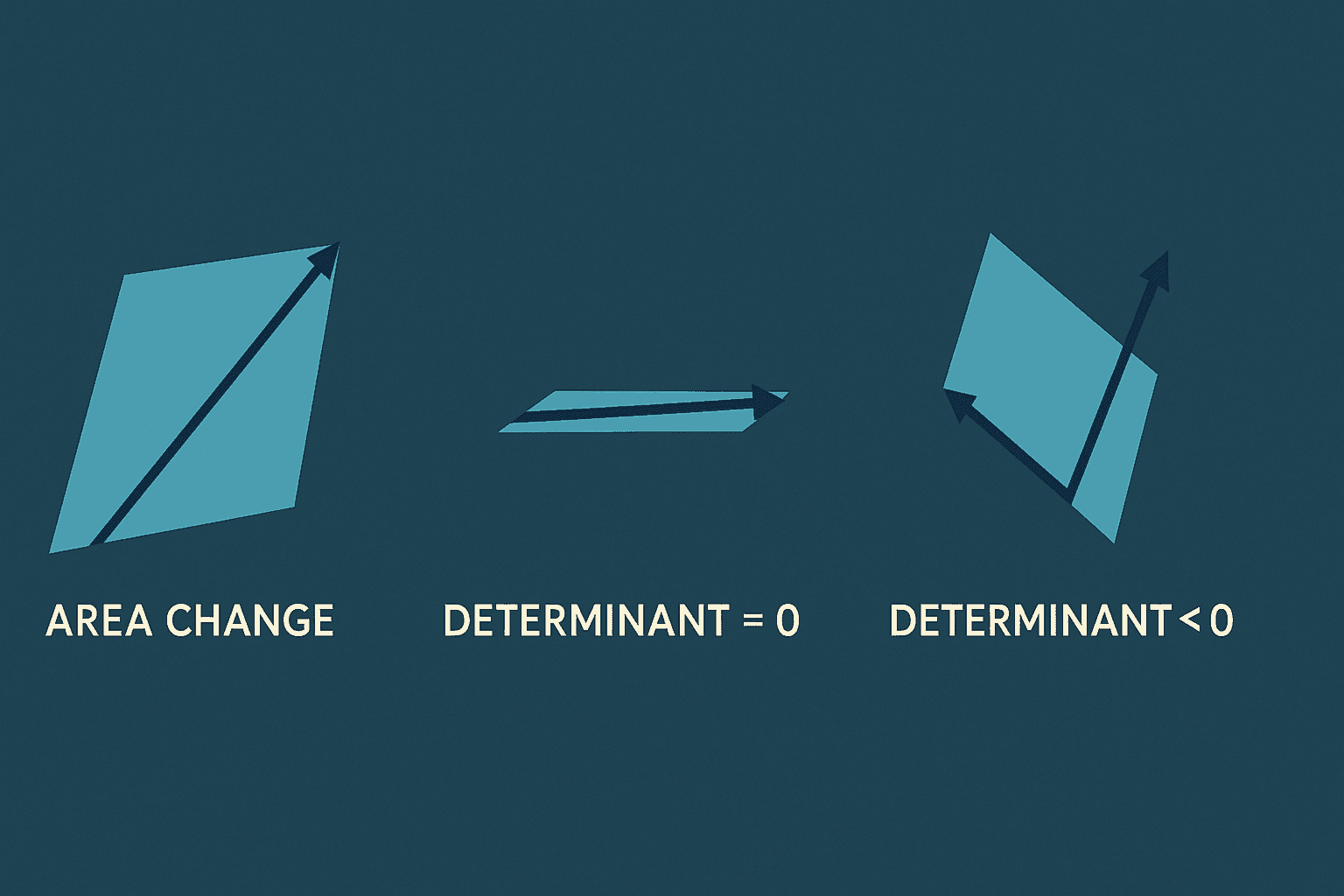

Determinants — The Geometry of Volume

The determinant of a transformation matrix tells you how much space is stretched or compressed.
For 2×2:

• If |det(A)| > 1 → space expands.

• If |det(A)| < 1 → space contracts.

• If det(A) = 0 → space collapses onto a lower dimension (information lost).

In ML, singular matrices (det=0) lead to rank deficiency — your data collapses into lower-dimensional subspace.
In life, it’s when all your effort projects onto one narrow axis — overfitting without generalization.

Healthy systems preserve enough volume to breathe.

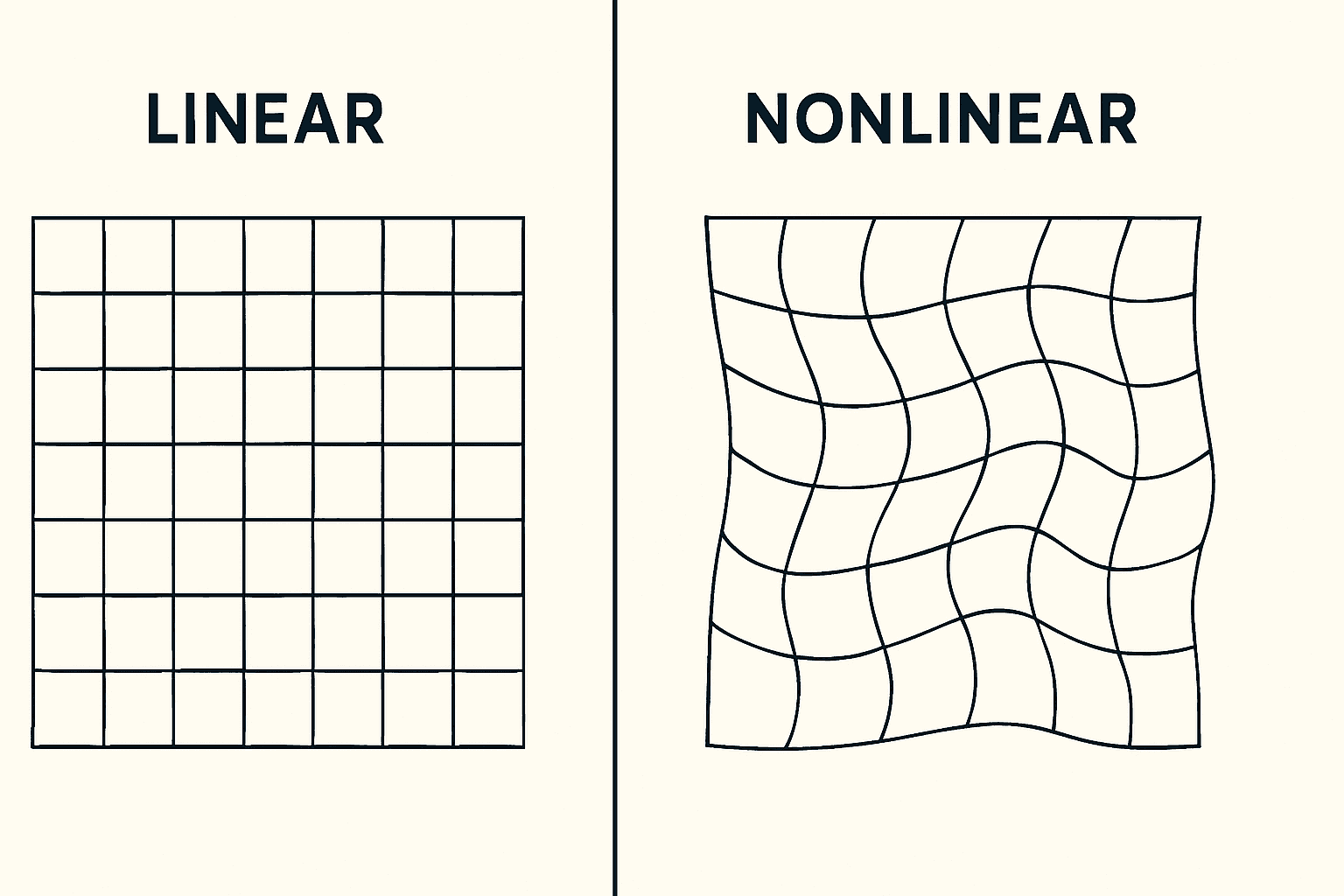

Pitfalls — When Transformations Break

Linear transformations assume order — straight lines map to straight lines, structure stays. But real-world systems are rarely pure.
Non-linearities creep in — human emotions, business shifts, noisy data.

That’s why AI needs activation functions, and humans need reflection — to bring non-linearity back where life demands creativity.

If every decision were linear, there’d be no learning, only repetition.

Linearity keeps things stable. Non-linearity keeps them alive.

The Geometry of Reinvention

When I revisited linear transformations after years in corporate roles, it didn’t feel like math — it felt like therapy.
Each concept carried a metaphor.

• Rotation reminded me that perspective changes everything.

• Scaling taught me balance — growth without distortion.

• Shearing showed how flexibility preserves structure.

I realized rebuilding after failure wasn’t about starting over — it was about finding the right transformation that maps who I was to who I could become.

The grid of my life hadn’t disappeared — it had just been reoriented.

Reflection — Transformation Beyond Math

Linear transformations taught me that progress is never random — it’s structured motion.
The grid changes, but the relationships stay intact.

That’s resilience — evolving without erasing.
That’s creativity — preserving structure while reimagining direction.

In machine learning, this principle builds models.
In life, it builds people.

We are all transformations — matrices of habits and thoughts applied to the raw data of experience.
The trick isn’t avoiding distortion; it’s learning which ones reveal your truest shape.

So when everything feels chaotic — when the grid bends, when the axis tilts — remember:
even warped lines can form new harmonies if you let the math run its course.

You’re not breaking; you’re being linearly transformed.

And maybe the real equation of growth isn’t hidden in code at all.
Maybe it’s this:

So go ahead.
Run another iteration.
Redefine your axes.
Let your next transformation be deliberate, not accidental.

Every rebuild begins with one shift in direction — and ends as a map of everything you chose to preserve.
